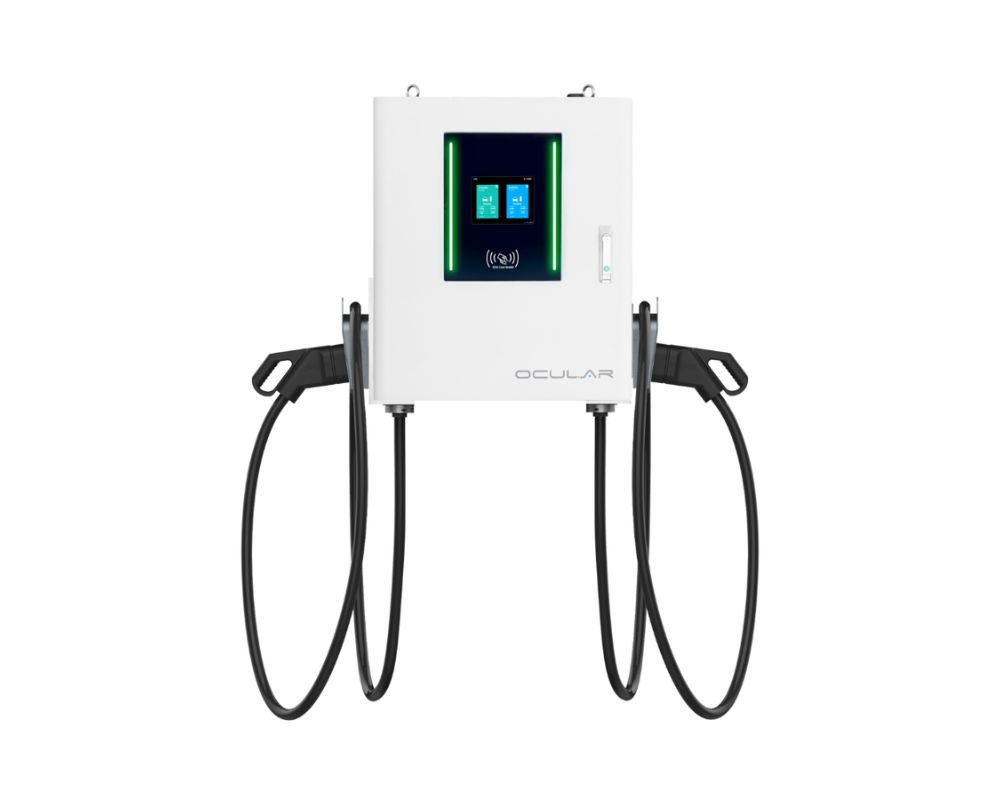

The Ocular Titan Dual DC Wallbox 60kW can fast charge 2 EV’s at once. The unit comes standard with 2x CCS2 Cables designed to charge 1 or 2 EV’s simultaneously.
CCS 2, Fast-charging –
Audi, BMW, Hyundai, Jaguar, KIA, Mercedes EQ, Mini, MG, Polestar, Renault, TESLA, Volkswagen, Volvo, SEA Electric, Volvo Trucks, Daimler Trucks, Hino Truck, BYD Buses.
99% of EV’s in New Zealand use CCS2.
CHAdeMO, the Japanese fast-charging-
Mitsubishi, Nissan
Specifications:
- CCS 2 Dual charging port
- Rated input voltage: 400V AC 3-Phase
- Frequency: 50Hz/60Hz
- DC plug type: Dual CCS Type 2 as standard – CHAdeMO to order
- Output voltage range: 150~1000V DC
- Max. output power: 60kW
- 8-inch touchscreen display
- RFID card, Mobile APP via OCPP
- OCPP 1.6 & 2.0 Compatible
- Load management available to control multiple units with load challenges.
- Efficiency: ≥94%
- Cable Length: 7m
- RCM Certificate to Australian and European Standards
Protection:
- Over voltage protection
- Under voltage protection
- Over load protection
- Leakage current protection
- Overtemperature protection
- Short circuit protection
- Lightning protection
Function & Accessory:
- Indicator- Display: 8 inch touch screen
- Emergency stop: Yes
- Payment support: Yes vis OCPP
- RFID/QR Code
- Ethernet/4G inbuilt
Working Environment:
- Operating temperature: -30°C ~+55°
- Relative humidity: 5%-95% non-condensing
- Maximum altitude: 2000m
- Cooling: Forced air cooling
- Standby power consumption:<25W
- Protection degree: IP54
Mechanical:
- Dimension (H/W/D)- 770/690/355mm
- Weight- 85KG
