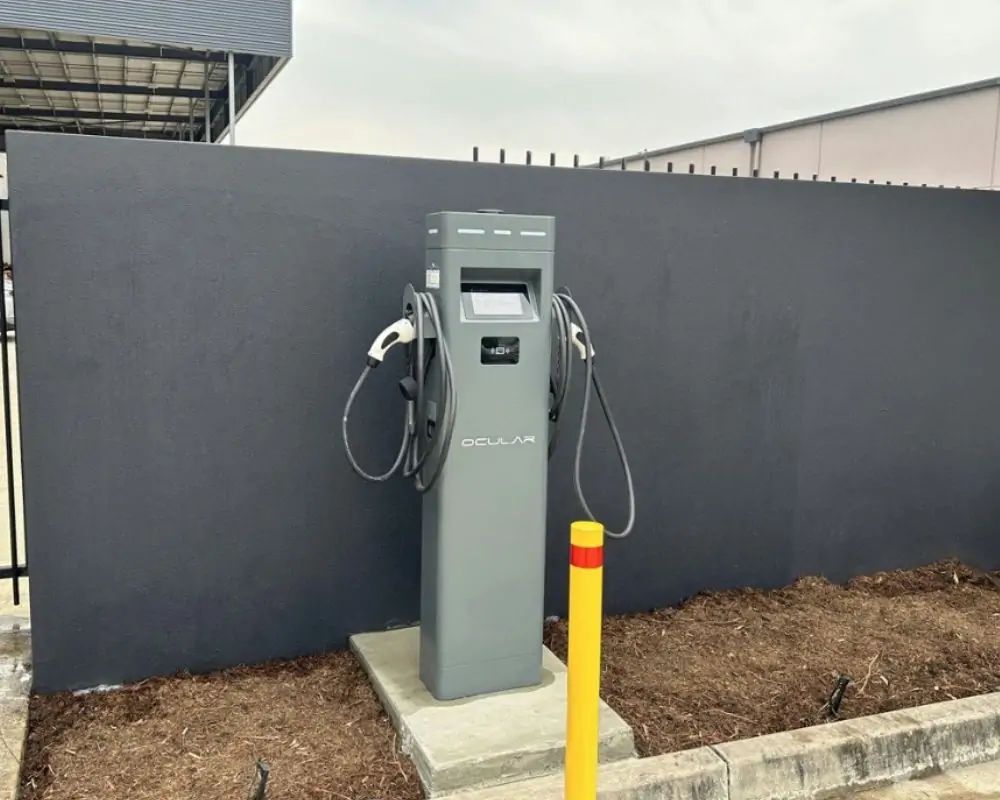

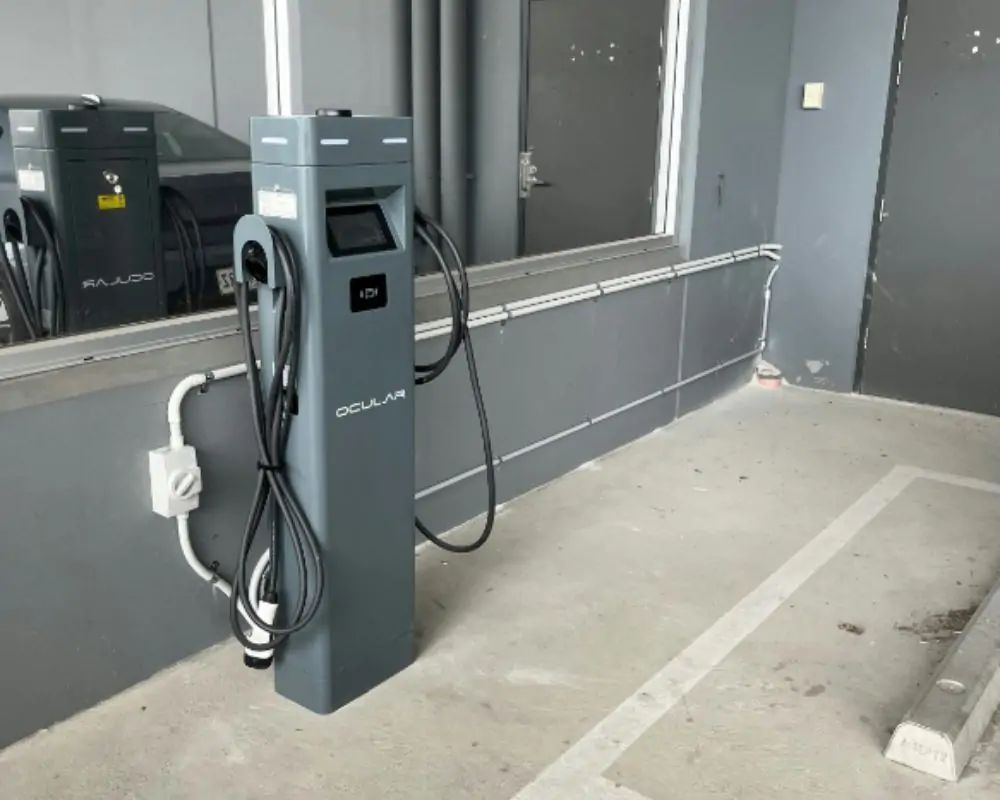

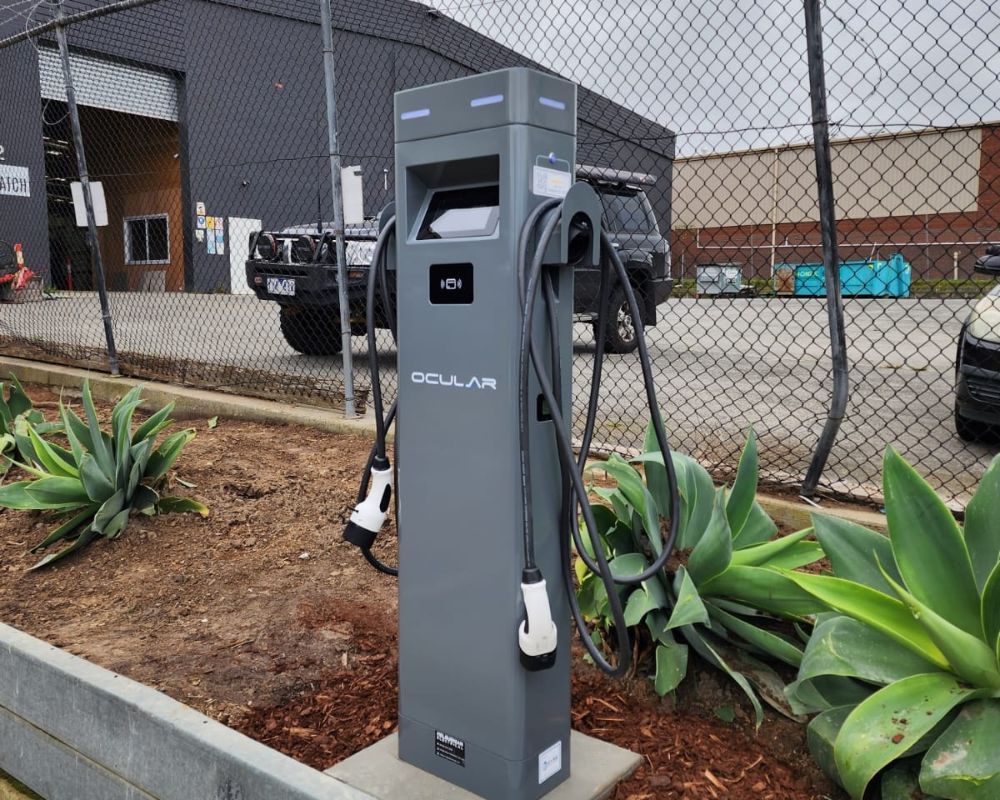

Ocular IQ Tower provides the pinnacle in Dual Outdoor charging for both commercial and public applications. The IQ Tower is encased in a robust metallic frame with a high quality and cost-effective EV charging point designed to offer full Mode 3 fast charging to any EV in New Zealand.This Dual unit provides the ability to provide 22kW to each charging port.
With OCPP 1.6J & 2.0 integration, the charger can be connected to any charging management system for easy operation, monitoring and billing.
Advanced Elements:
- Inbuilt Multi level load balancing capabilities with cluster connectivity, ensures fair distribution of charging power among plugged-in vehicles while respecting the grid connection point limitations.
- Integrated RCD Type B for reduced installation costs
- 4G Modem inbuilt to allow for increased flexibility with deployments
- Advanced 7’ LCD Display for live charging display
- Commercial metallic casing designed and tested to Australian conditions. Why compromise with plastic?
- Advanced Commercial Solar Integration – ( Requires an additional controller )
- Easy installation with a wide-angle door opening and modular components shorten the field time and maintenance.
Main Features:
- 7’ LCD Display
- 230-400Volts Dual Three Phase with configurable output (10A-32A)
- Charging speeds – 2x 7kW (32A)
- 2x 5m Type 2 EV cables Hardwired
- Robust commercial-grade metallic housing
- RCM and SDOC
- Full OCPP 1.6J including smart profiles
- LED light indicating state of charger: charging, faulty, or available
- Over current, short circuit, over voltage, under voltage, ground fault, lightning surge, over temperature
- IEC 62196 dual Type-2 sockets
- IEC 61851-1 Mode 3 fast charging
- Built-in overload and fault current protection
- Built-in LED charging status indicator
- MID certified energy meter with NMI option
- NMI upgrade available
- Built-in Dual RCCB Type-B IEC certified and compliant with EV standards
- CE Compliant
- RFID card reader. ISO/IEC 156963 and 14443
- IK10 charging station conforming to IEC 61851-22
- 42 kg
- IP55
- Dimensions: 350 x 1435 x 200 mm
- Operating Temp: (-30 C to +55 C) in operation, (-40 C to +80 C) in storage
- Ethernet, (2.4G)
- 5G Wi-Fi
- 4G inbuilt modem.
- Full OCPP 1.6J commands support
•OCPP profiles 1: Firmware Management and Remote Trigger
•OCPP profiles 2: Smart Charging
•OCPP profiles 3: Local Auth List Management and Reservation - RFID Access or smart phone via OCPP
- Outdoor rated
- Load management enabled up to 250 units – Dynamic inbuilt and Active available via module
- Compatible with all-electric vehicles and models including: Audi, BMW, BYD, EQC, Holden, Honda, Hyundai, Jaguar, KIA, Mazda, Mercedes Benz, Mini, MG, Mitsubishi, Nissan, Polestar, Porsche, Renault, Rivian, Tesla, Toyota, Volkswagen, Volvo
