Credit Card EV Charger – Ocular Titan 60kW

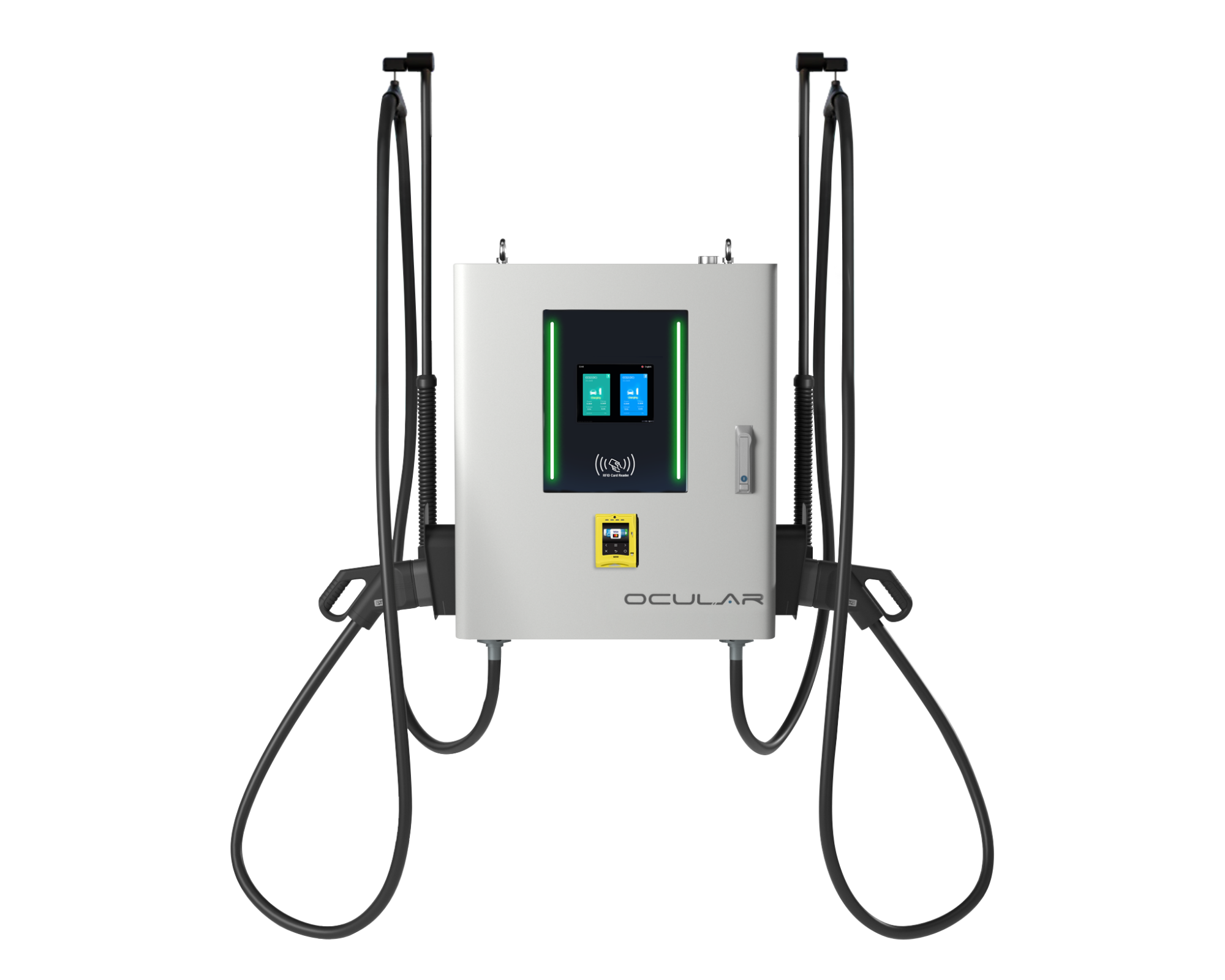

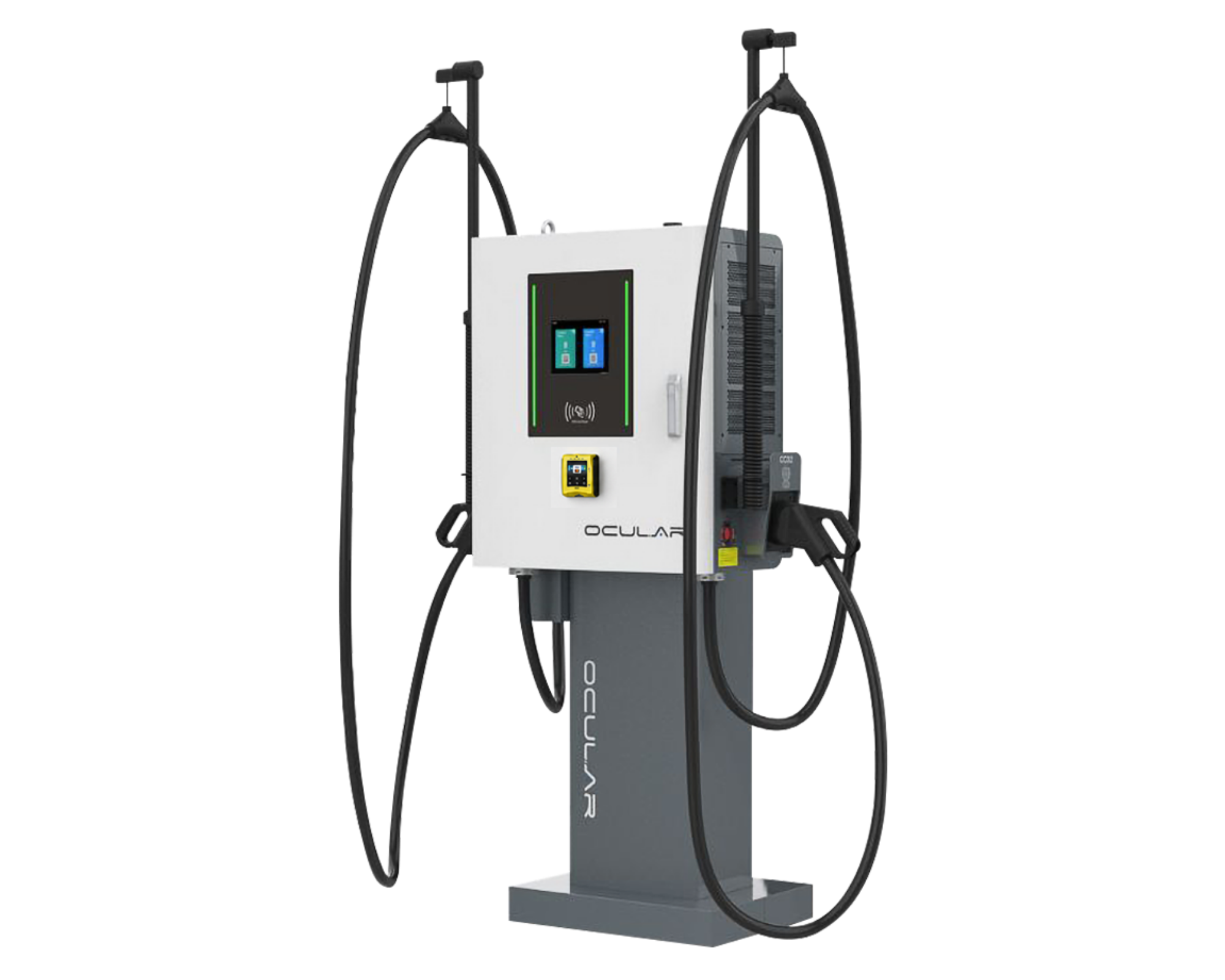

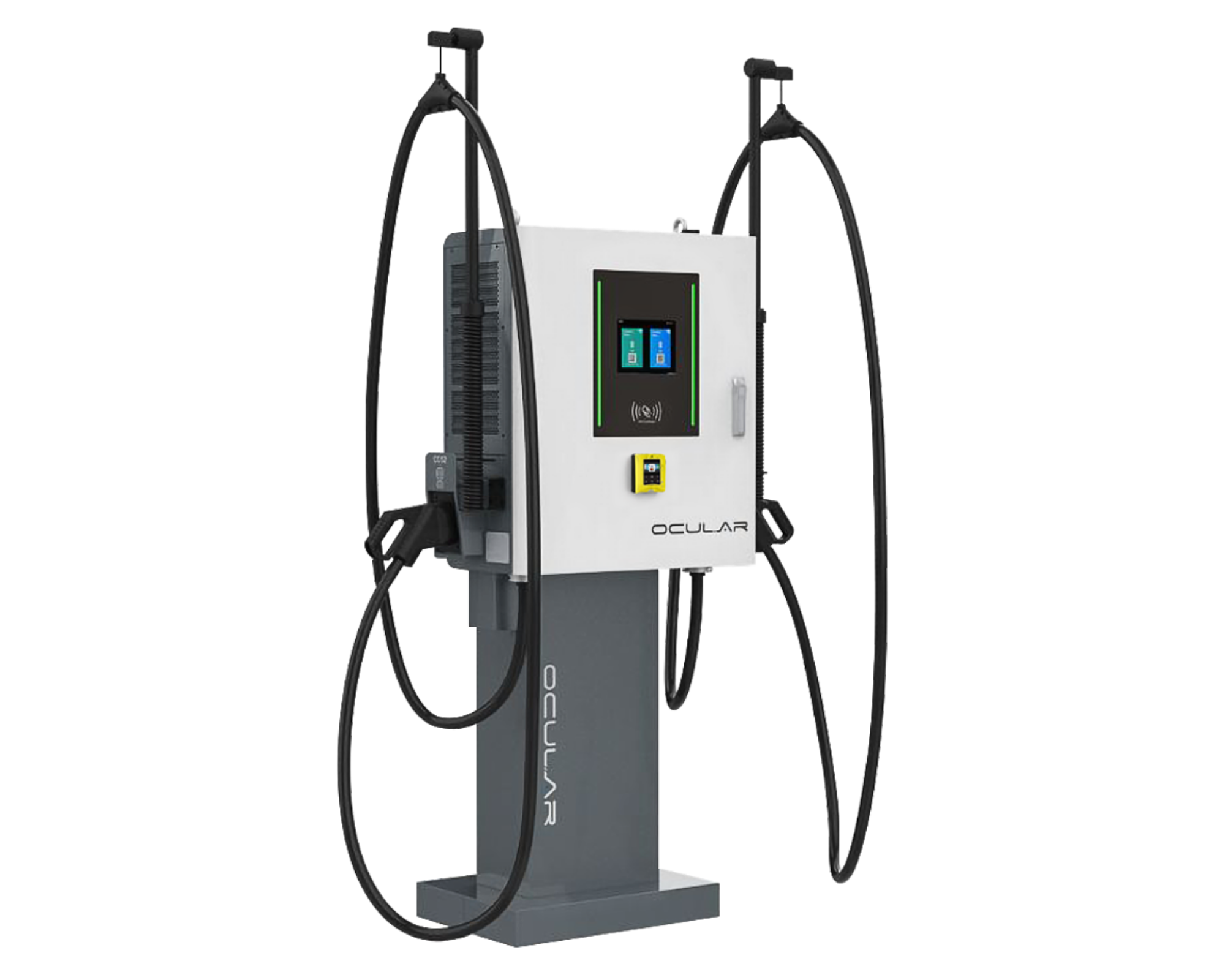

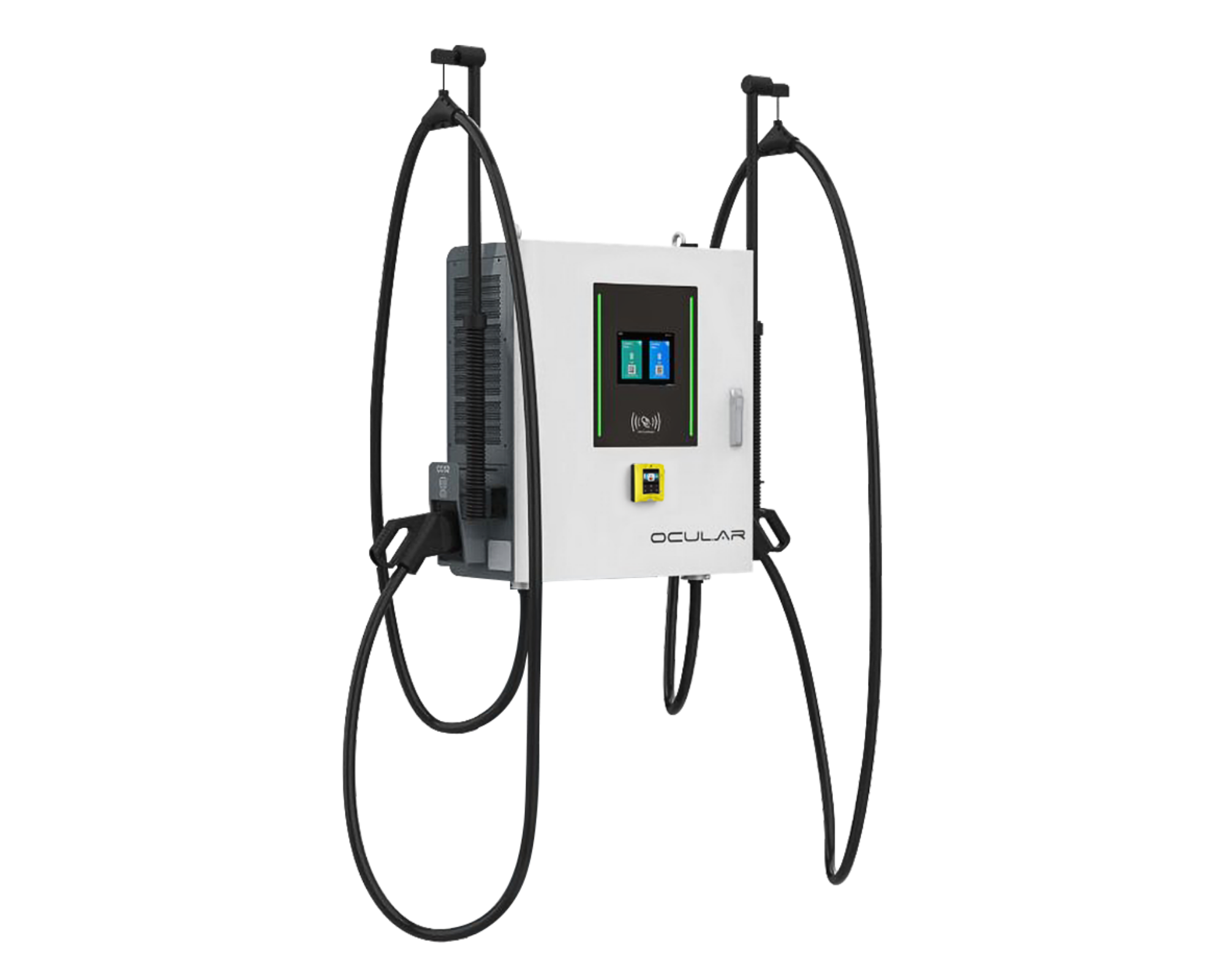

The Ocular Titan Dual DC Wallbox 60kW can fast charge 2 EV’s at once.  The unit comes standard with 2x CCS2 Cables designed to charge 1 or 2 EV’s simultaneously.

CCS 2, Fast-charging –
Audi, BMW, Hyundai, Jaguar, KIA, Mercedes EQ, Mini, MG, Polestar, Renault, TESLA, Volkswagen, Volvo, SEA Electric, Volvo Trucks, Daimler Trucks, Hino Truck, BYD Buses.
99% of EV’s in Australia use CCS2.

Nayax Module:

• The credit card Nayax module simplifies and enhances the user experience
• Quick and straightforward transactions without the need to download or navigate through an app
• Less dependence on internet connectivity and mobile device battery life, ensuring consistent service availability
• Faster payment processing as users can simply tap their cards, reducing wait times.

Specifications:

• CCS 2 Dual charging port
• Rated input voltage: 400V AC 3-Phase
• Frequency: 50Hz/60Hz
• DC plug type: Dual CCS Type 2 as standard – CHAdeMO to order
• Output voltage range: 150~1000V DC
• Max. output power: 60kW
• 8-inch touchscreen display
• RFID card, Mobile APP via OCPP
• OCPP 1.6 & 2.0 Compatible
• Load management available to control multiple units with load challenges.
• Efficiency: ≥94%
• Cable Length: 7m
• RCM Certificate to Australian and European Standards

Protection:

• Over voltage protection
• Under voltage protection
• Over load protection
• Leakage current protection
• Overtemperature protection
• Short circuit protection
• Lightning protection

Function & Accessory:

• Indicator- Display: 8 inch touch screen
• Emergency stop: Yes
• Payment support: Yes vis OCPP
• RFID/QR Code
• Ethernet/4G inbuilt

Working Environment:

• Operating temperature: -30°C ~+55°
• Relative humidity: 5%-95% non-condensing
• Maximum altitude: 2000m
• Cooling: Forced air cooling
• Standby power consumption:<25W
• Protection degree: IP54

Mechanical:

• Dimension (H/W/D)- 770/690/355mm
• Weight- 85KG

Please note* This product requires a monthly fee to enable the credit card terminal which is standard practice. Please call EVSE for more information.
