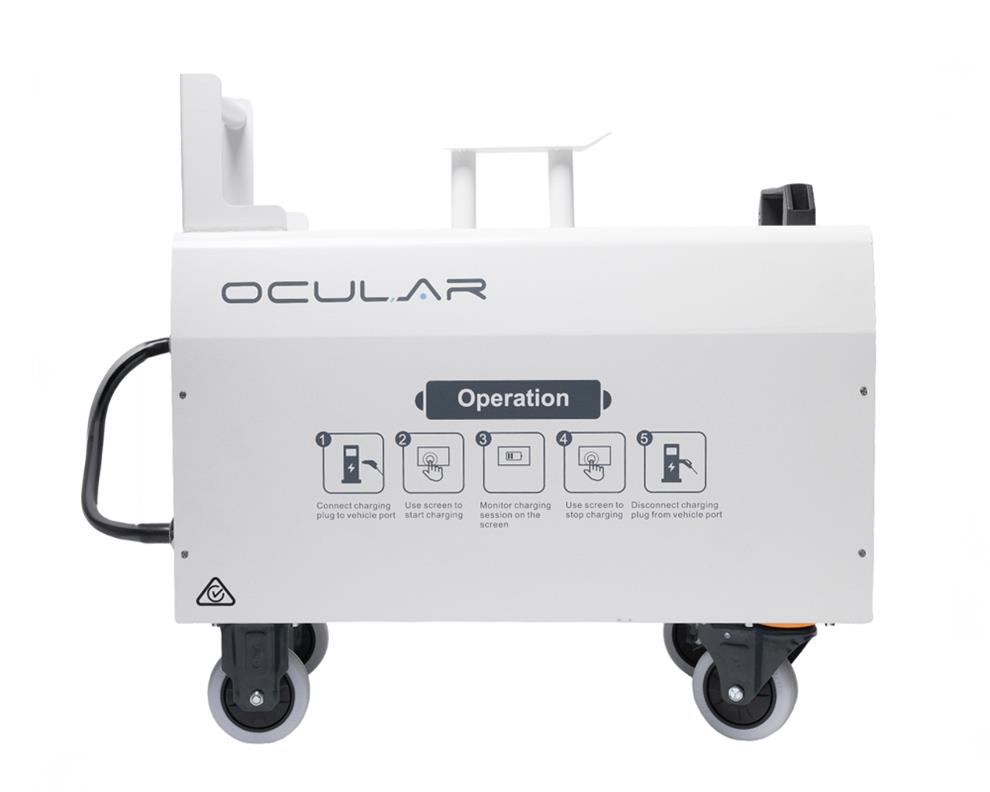

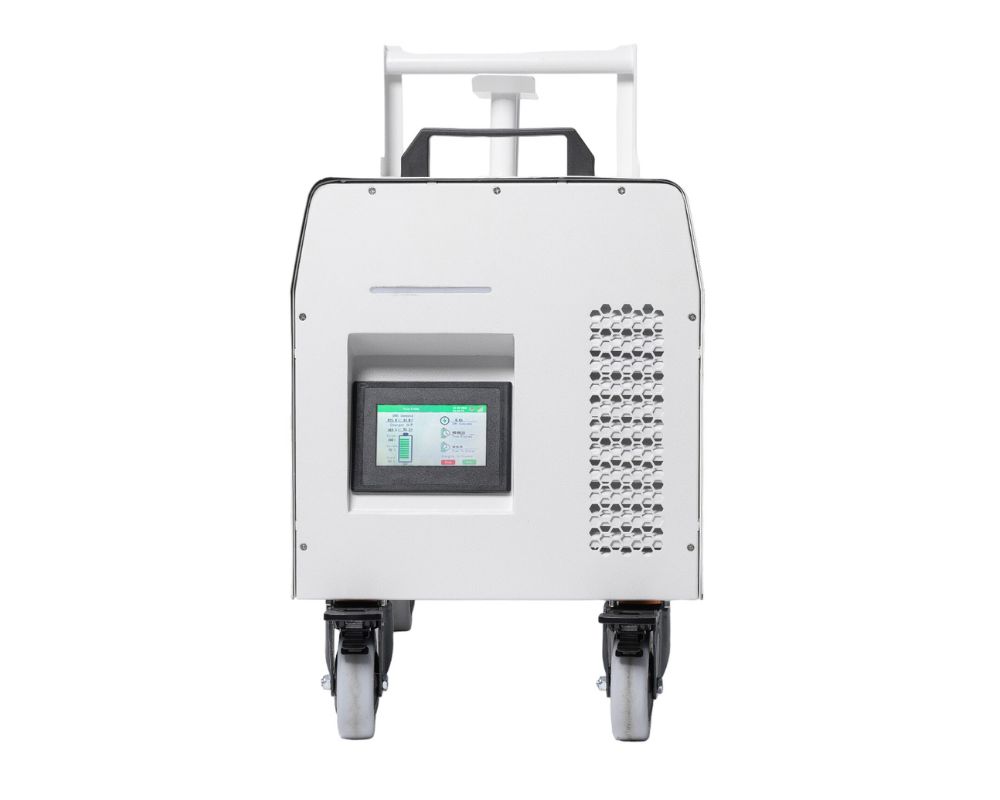

20kW Ocular Roam Portable DC Charging Station

DC Quick charging station offers Electric Vehicle owners an opportunity to charge their car safely and quickly.

Specifications:

•  CCS EV charging station with  CCS Combo 2 (CHAdeMO to order only)
• Portable- Plugs into 3-phase wall outlet 32Amp 3-phase (20kW)
• Compatible with every EV
• LCD monitor
• 5m CCS2 Cable
• 12-month Warranty
• Meets Australian and European standards
• Robust construction and silver-plated contacts assure a reliable connection.
• LED User-friendly interface
• Soft-switching technology, efficiency up to 95%
• Available in 20kW or 30kW models

Input Requirements:

• AC Supply System Three-Phase, 5 Wire AC system
• Nominal Input Voltage AC380V±15%
• Input Frequency 45-65Hz

Environmental Requirements:

• Ambient Temperature Range -25 to 55°C
• Ambient Humidity 5 to 95%
• Storage Temperature -40 to 70°C

Mechanical Requirements:

• IP 54
• Cooling Air-cooled

Output Requirements:

• Number of Outputs 1
• Output DC 200-750V

User Interface & Display Requirements:

• Display & Touch-Screen Size 4.3 InchesTouch Screen
• User Authentication Mobile Application or User Interface / QR Code/RFID Card /Password Login
• Metering Information Consumption Units

Communication Requirements:

• Communication between EVSE and Central server Portable: /
• Interface between Charger and CMS Ethernet/3G/4G/WIFI (Optional)

Protection & Safety Requirements:

• Executive Standard IEC 62196 2017, IEC 61851 2017, SAE J1772,CHAdeMO etc.
• Safety Parameters Over Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc.
