The Ocular Titan 40kW is a compact, premium DC fast charger designed to deliver reliable and convenient EV charging across commercial, workplace, fleet and public locations.
With up to 40kW of DC fast charging, a premium 7-inch touchscreen and flexible wall or floor mounting, the Titan 40kW provides a simple and practical charging solution for a wide range of sites.
Specifications:
- Up to 40kW DC fast charging
- CCS2 DC charging
- Rated power output: 40kW
- Power system / voltage: 400 VAC ±15%
- DC voltage range: 150–1000V DC
- 7-inch high-resolution touchscreen display
- User authentication: RFID, Mobile App, Payment Card, Plug & Charge and Autocharge
- Optional Nayax credit card payment module
- Built-in 4G and Wi-Fi
- Ethernet and RS485 communication
- Energy meter accuracy: ±1%

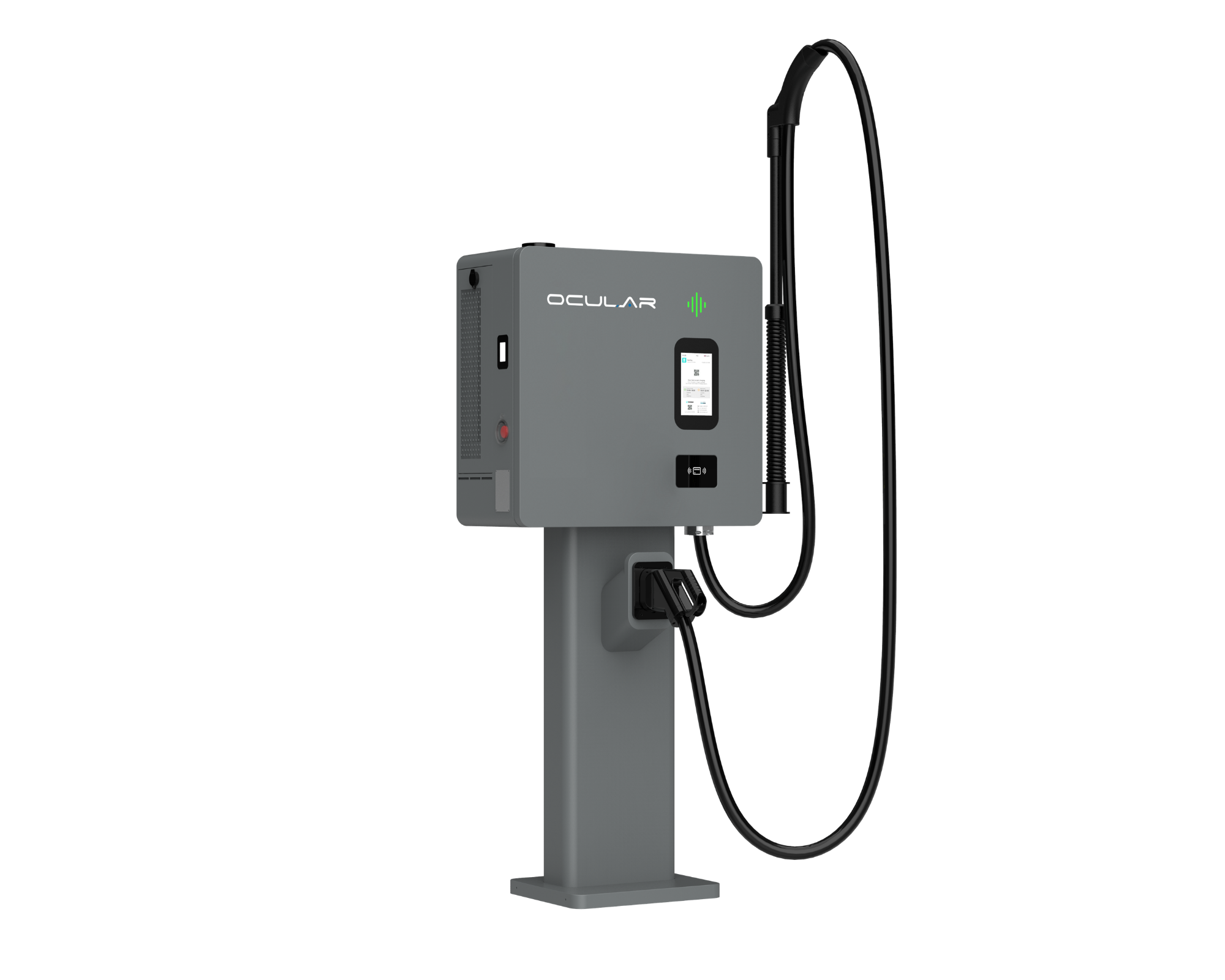

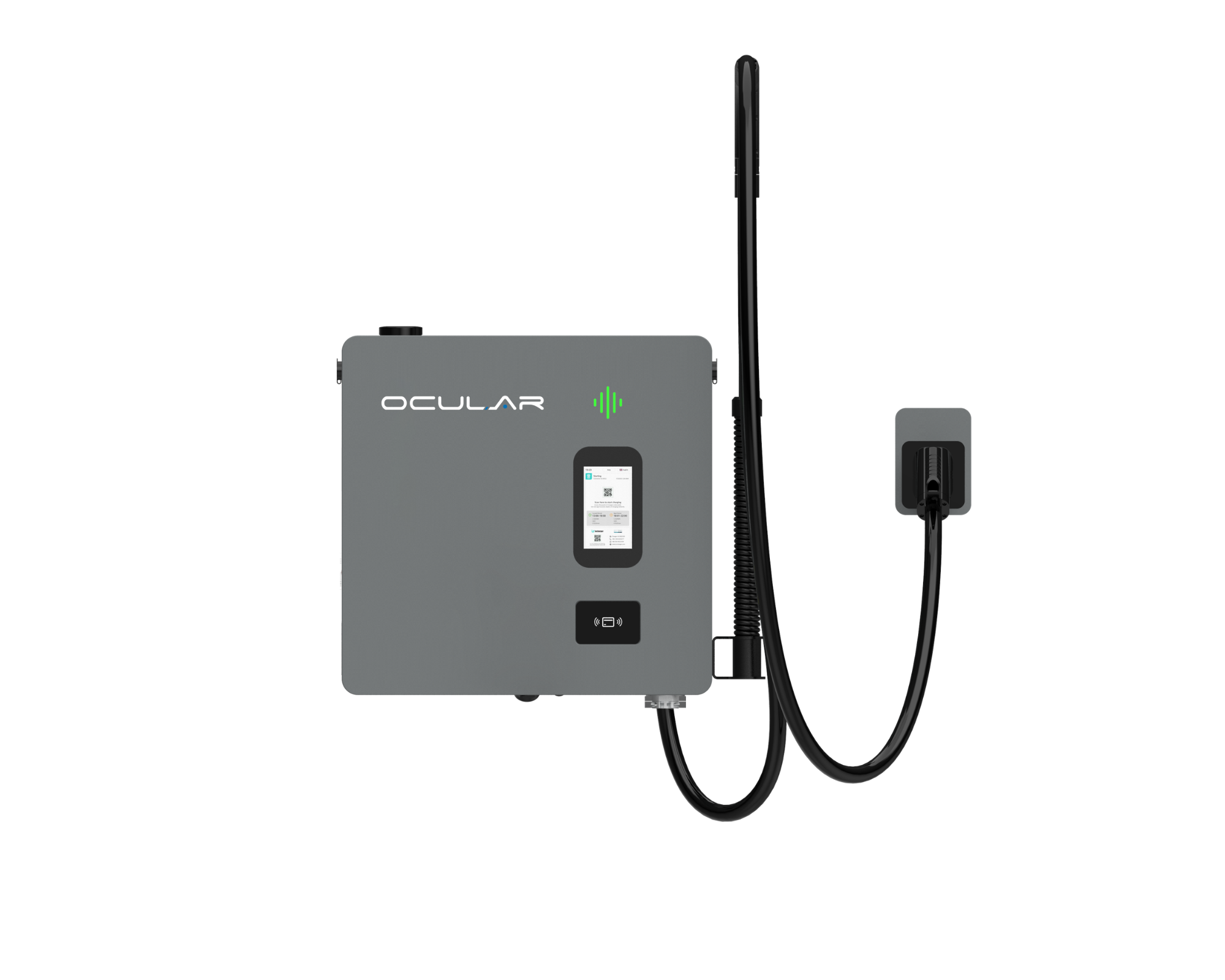

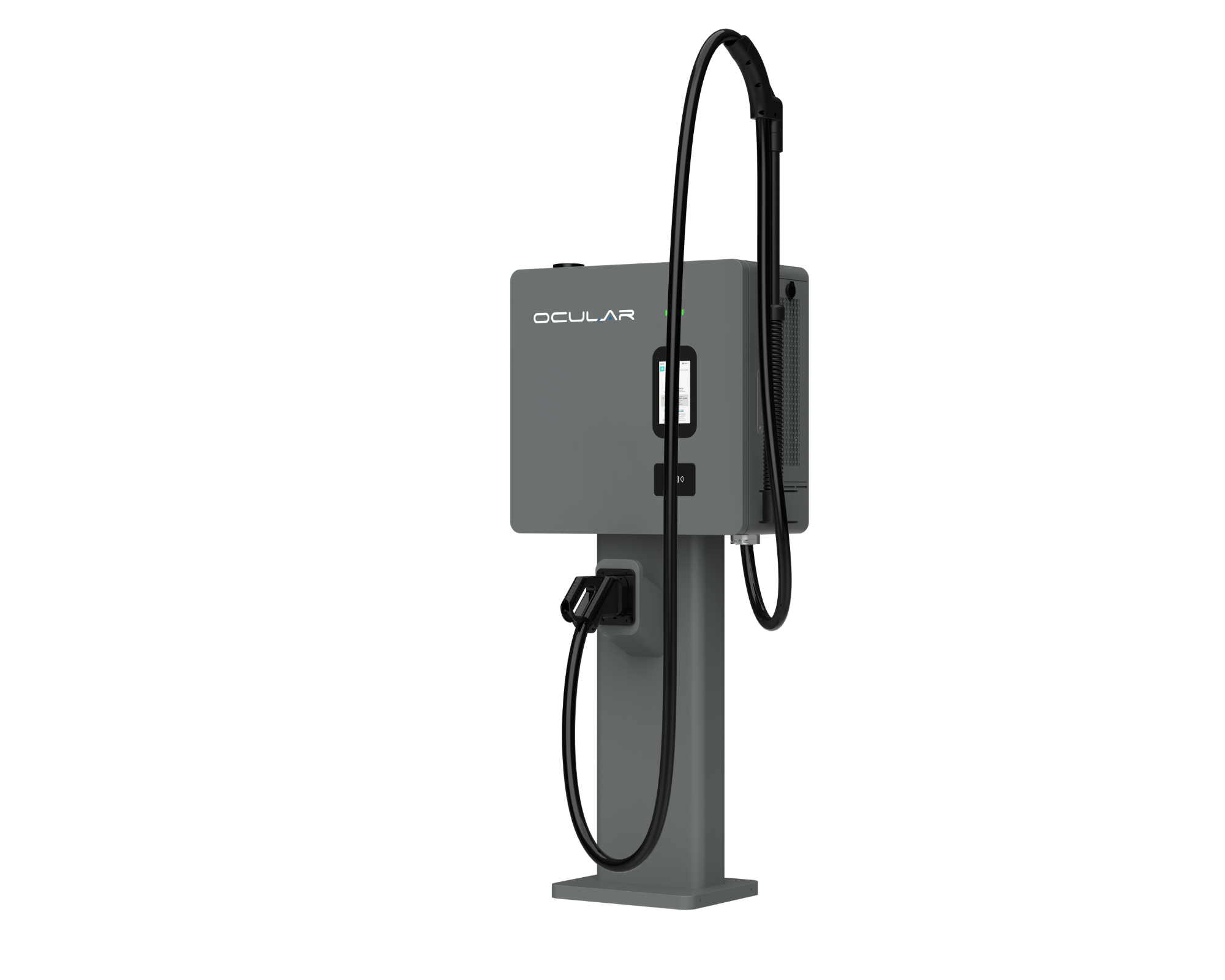

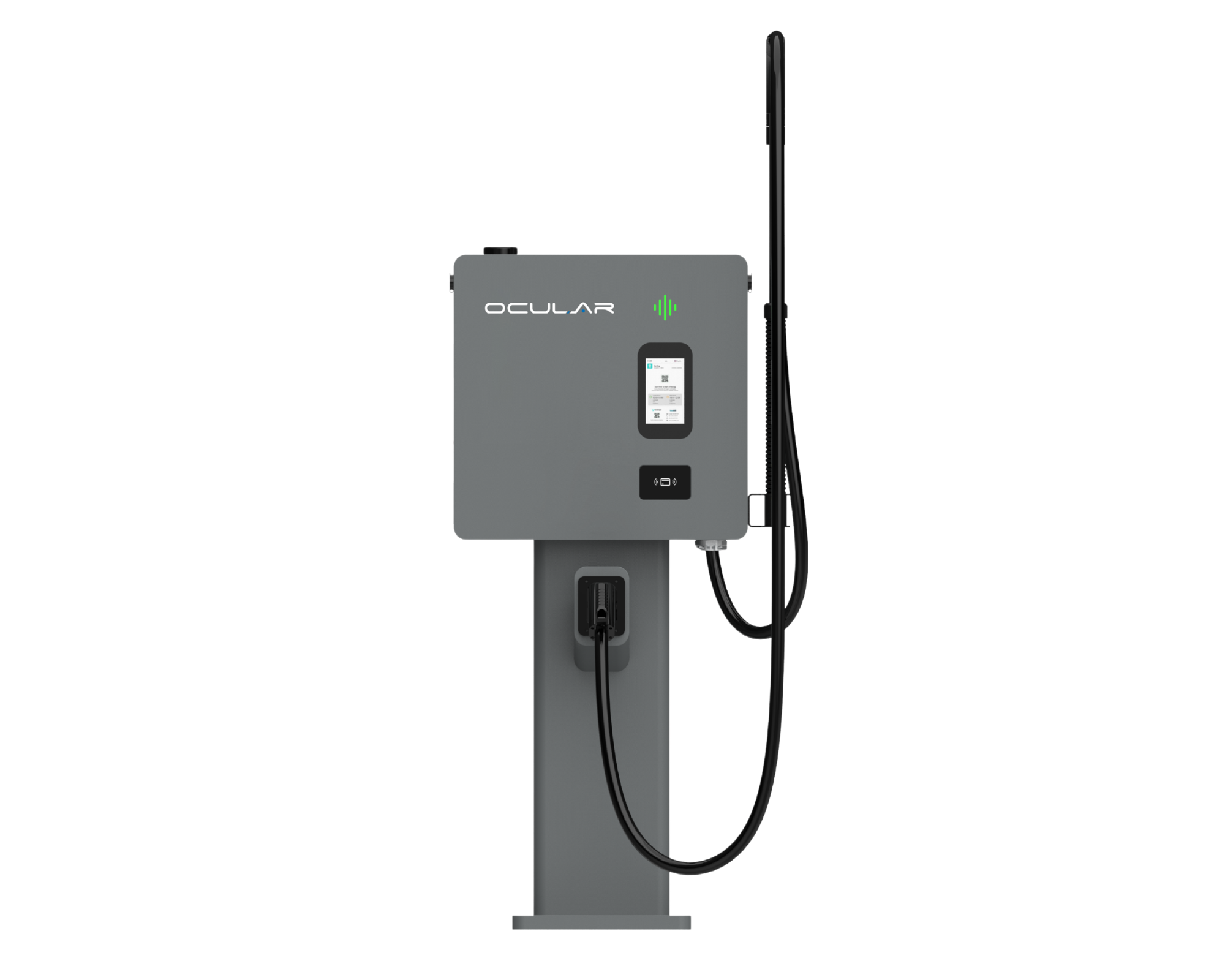

- Wall or floor mounted via optional pedestal
- Optional cable management system
- Suitable for indoor and outdoor use
- 2-year warranty, with extended warranties available
Protection:
The Titan 40kW is designed for reliable operation in demanding environments, with:
- IP55 casing protection
- IP65-rated power modules
- IK10 impact protection
- UV-resistant enclosure
- Insulation Class II
- Overvoltage Category III
- UL94 flammability rating
- Stainless steel 304 enclosure
Function & Accessory:
- RFID authentication
- Mobile app charging
- Payment card support
- Plug & Charge
- Autocharge
- Optional Nayax credit card module
- Built-in 4G
- Wi-Fi 2.4 GHz
- Ethernet communication
- RS485 serial communication
- Optional cable management system
- Optional pedestal for floor mounting
Working Environment:
- Operating temperature: -30°C to +50°C
- Storage temperature: -40°C to +75°C
- Relative humidity: up to 95%, non-condensing
- Suitable for indoor and outdoor use
Mechanical:
- Dimensions (H/W/D): 670 × 690 × 325mm
- Net weight: 93kg
- Case material: 304 stainless steel
- Mounting: Wall or floor via optional pedestal
